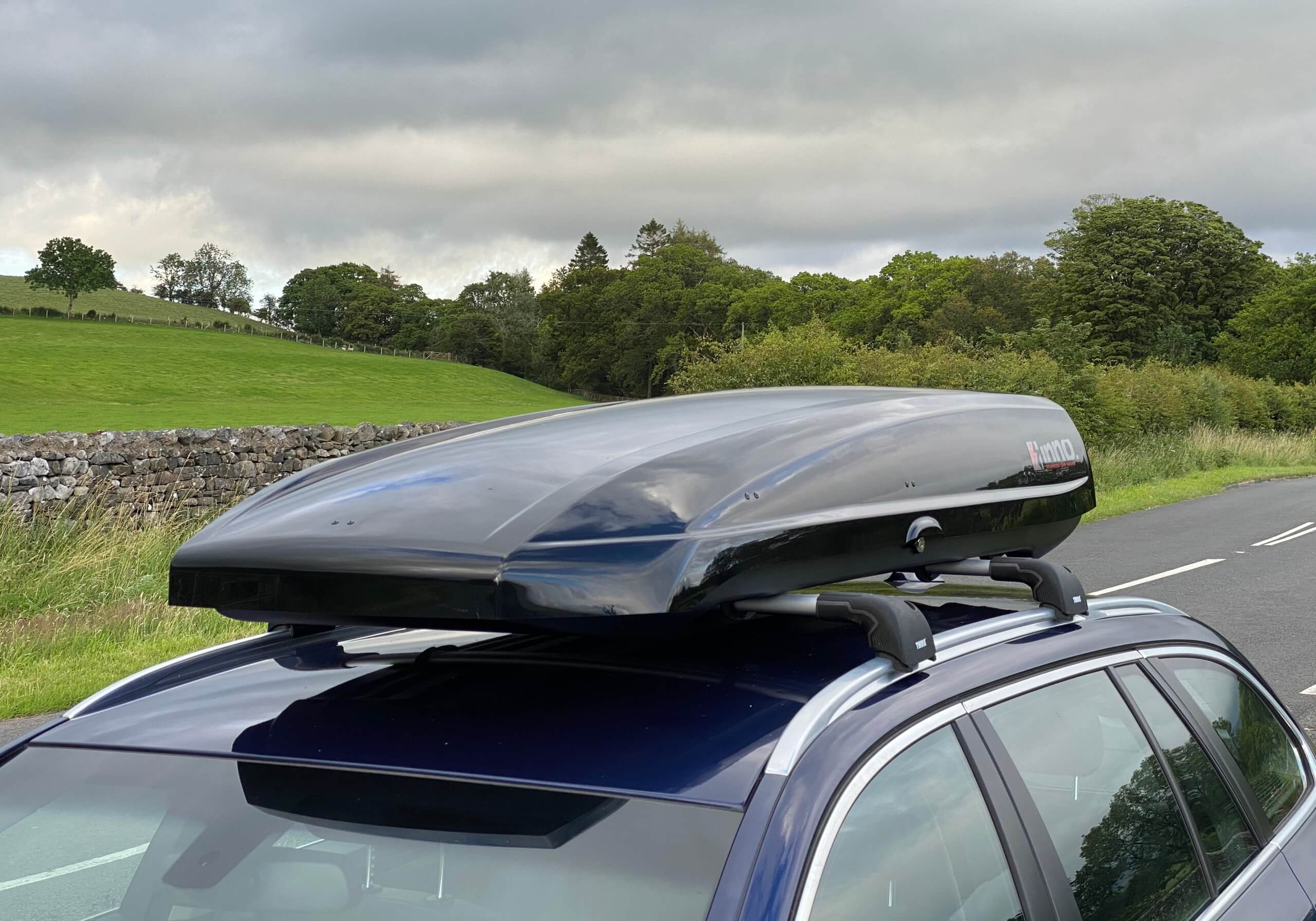

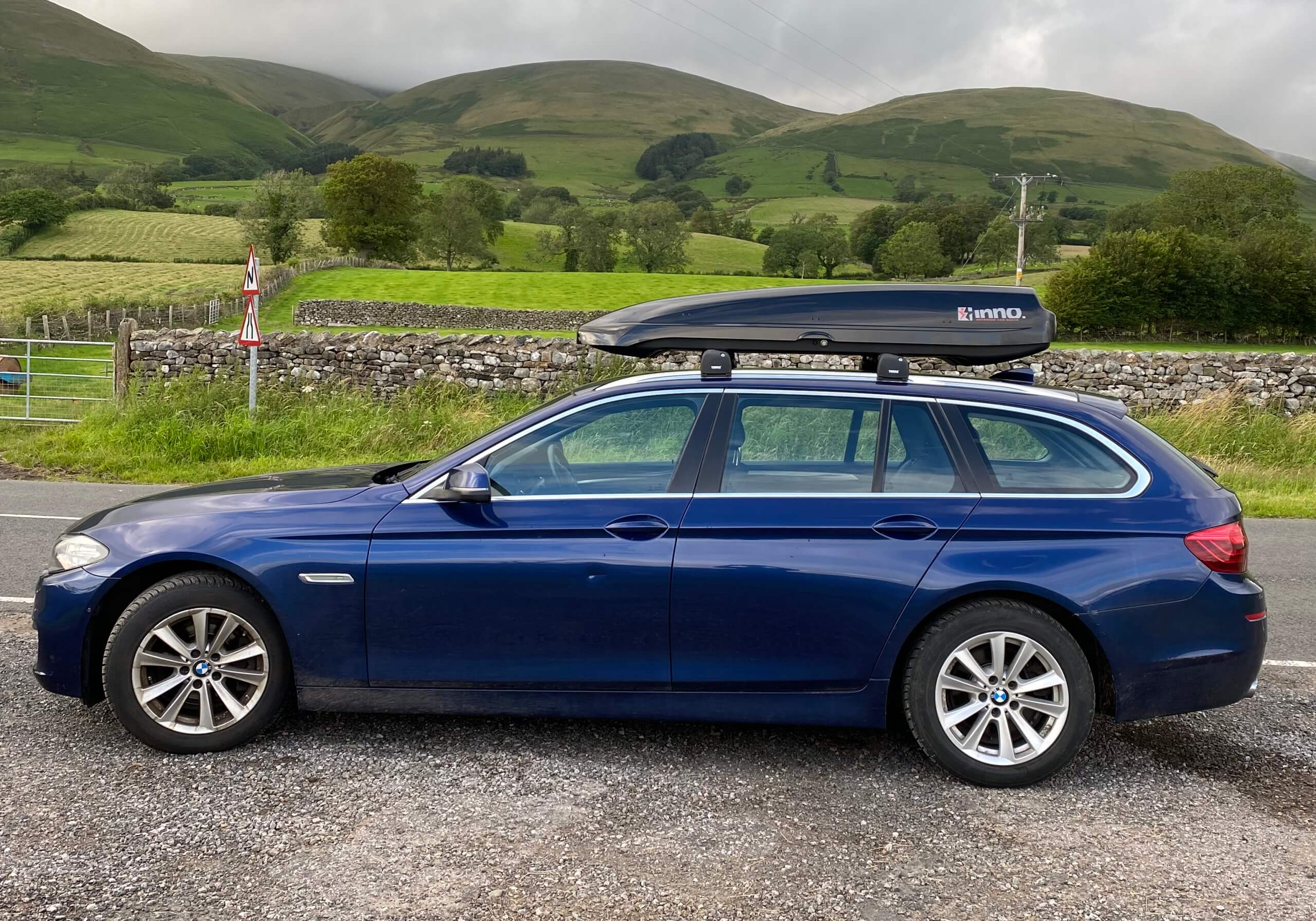

INNO Shadow 16 roof box, black, no. INRS16B

INNO is Japan's premier car racks manufacturer, well known in international markets for their innovative designs and engineering, and for build quality which is right up there with the best. They work closely with the Japanese car manufacturers as well as having their own branded products.

What makes INNO roof boxes special?

The genuine innovation in these Shadow roof boxes is the use of SPM plastic moulding technology for the roof box bases; this creates a product that it lighter, stiffer and up to 50% stronger than is achieved with standard vacuum-forming. It also produces an all round silky smooth finish.

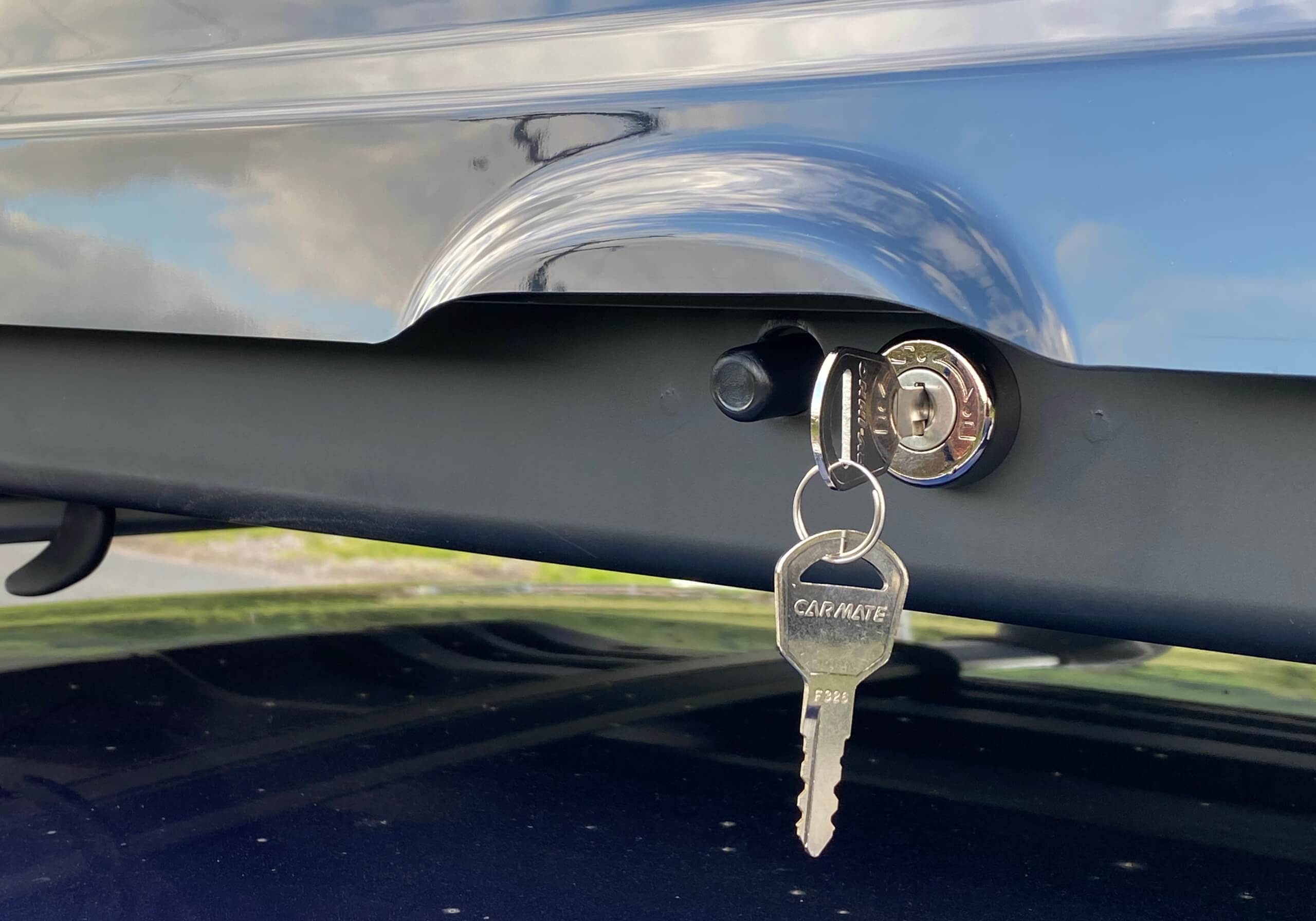

They also pioneered a sophisticated two stage central locking system, now picked up by some European manufacturers fior their premium boxes. The 3 box catches are released by pushing a button, and they stay released until the box is closed again. (INNO has a patent on this, which is why other systems are not quite as clever!) You can't push the button without unlocking the box, and (for safety and security) you can't remove the key until the box is properly closed again. Cheaper locking systems require you to use the key to move the whole locking system, to unlock and relock, which puts a strain on the whole system.

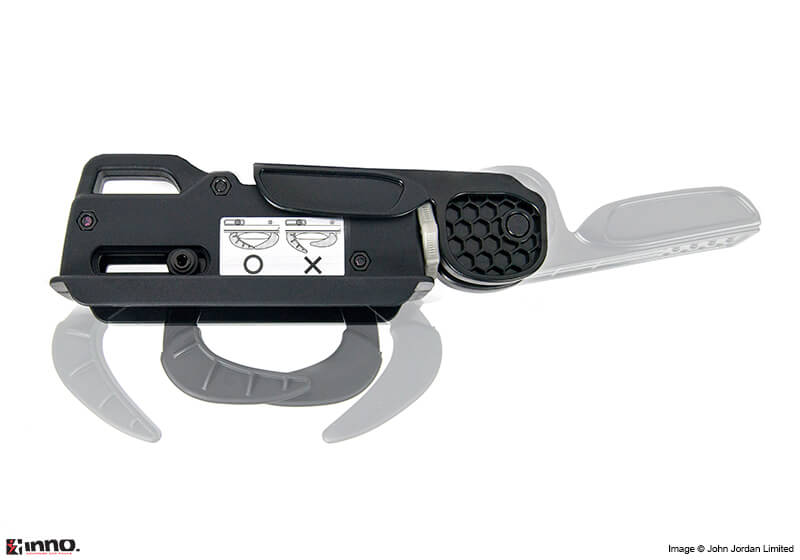

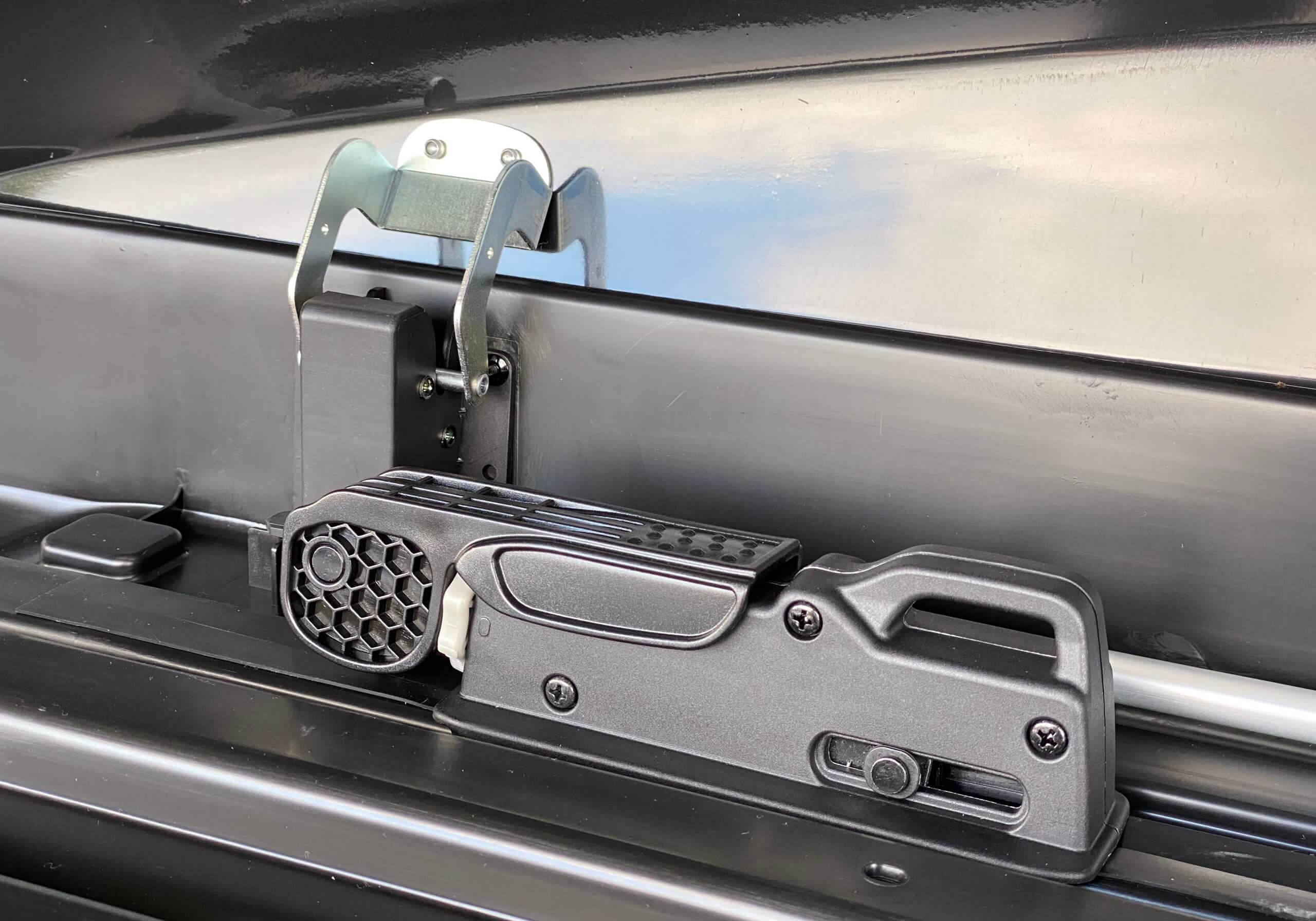

INNO’s 'Memory Mounting System' is particularly simple to use, and is adjustable to fit bars up to 90mm wide - which includes all the bars we sell. You only need to adjust the fittings the first time you use them – thereafter you push them through the waterproof slots in the base of the box, so the claw fittings are either side of the roof bar, and just close the cam lever. It's a one-handed operation, so you can hold onto the edge of the car with your other hand. These fittings are also very low profile, taking up minimal space in the box.

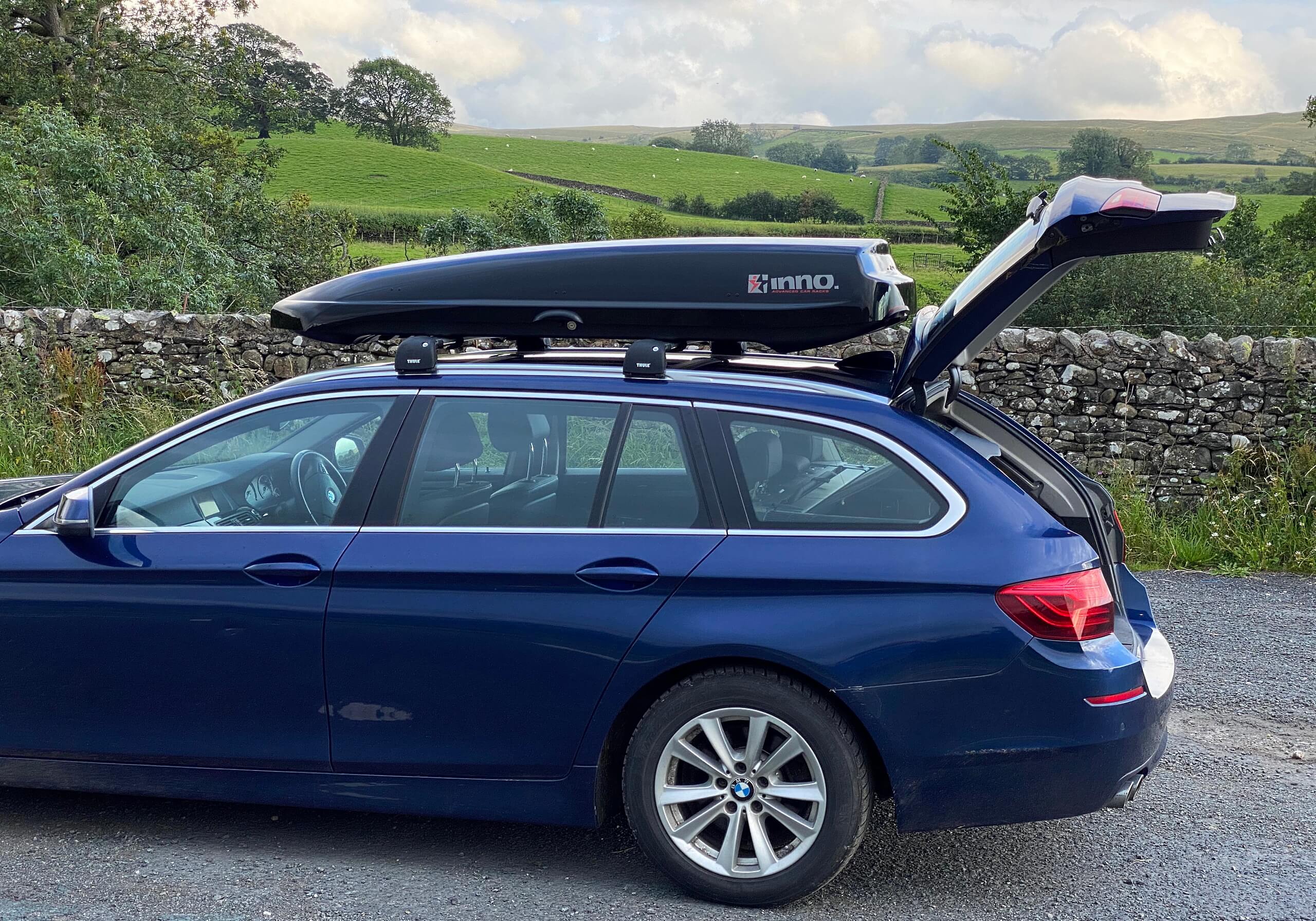

T-track adapters are available if needed, shown in the list below. Use these instead of the Quick Grip fittings - they'll allow you to push the box further back or forward, which can be important if there's a potential clash with a fully opened tailgate. T-track adapters also provide more flexibility in side to side positioning, because claw fittings should not be used in the area of the roof bar feet (claw fittings usually touch the feet before they are tight enough on the bars) so you may not be able to position the box just where you want it; this matters if you want to carry bikes on the roof because you often need to push the box across to the edge of the roof bars.

Other key features and specifications:

• They open from both sides, so you can choose the position on the roof bars (depending e.g. on whether you are also carrying a bike) and to make for easier fitting and removal, loading and unloading
• Spring struts for wide and easy opening and closing
• ’Just pull to shut’ 3 point central locking – you cannot remove the key until the box is locked
• 3 year guarantee
• Weight 19kg empty, maximum load 50kg. Most EU manufacturers now get their boxes tested to 75kg if possible - there is a lot of competition in this market - but INNO have not yet retested
• Takes 6-8 pairs of skis or 4-6 snowboards (max 180cm)

These are special, good looking boxes, technically very advanced. Although only a nominal 360 litres, their width and length allows us to load a similar amount of standard type baggage as we'd load into a 450 litre box. We have limited stock for the 2020 season, so please don't delay if you want one! When they are sold out we'll take them off the site, so as to not to disappoint other customers. INNO's supply chain has been badly disrupted by the corona crisis, and we won't have a resupply of INNO boxes until late autumn 2020 at the earliest.

Do you need roof bars as well? If so, check out our amazing box and bars package deal which provides everything you need, including this box, and locking roof bars, all for a fixed price! Click here for more details.

Technical specifications at a glance:

External dimensions: 200 (l) x 81 (w) x 34 (h) cm

Internal dimensions: 183 (l) x 65 (w) 28 (h) cm

Volume: 360 litres

Weight: 19kg

Max load capacity: 50kg

Opens from: both sides

Type of struts: spring struts

Fits bars up to: 90mm wide by 35mm deep

Distance from rear roof bar to rear of box: 73cm to 46cm

Distance between roof bar fittings: 60cm to 100cm

Guarantee: 5 years

Colour: gloss black lid, satin black base (SPM)
